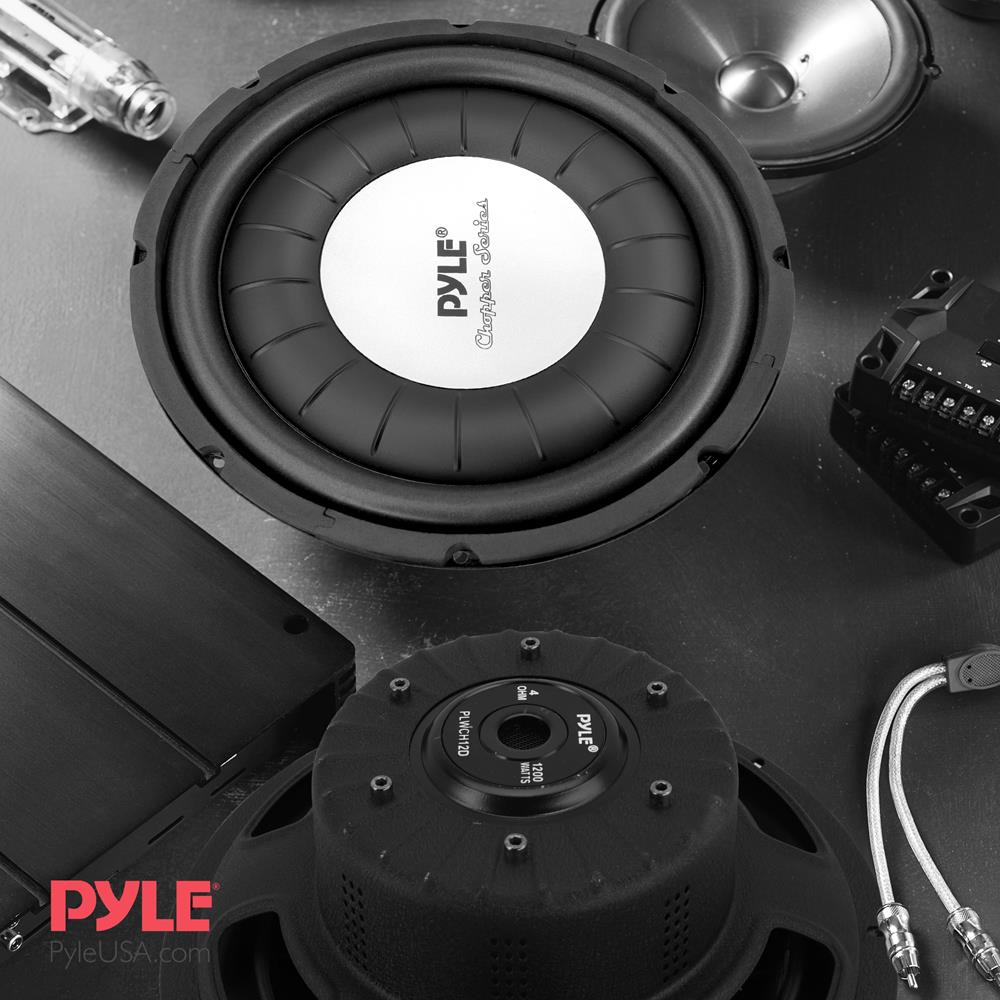

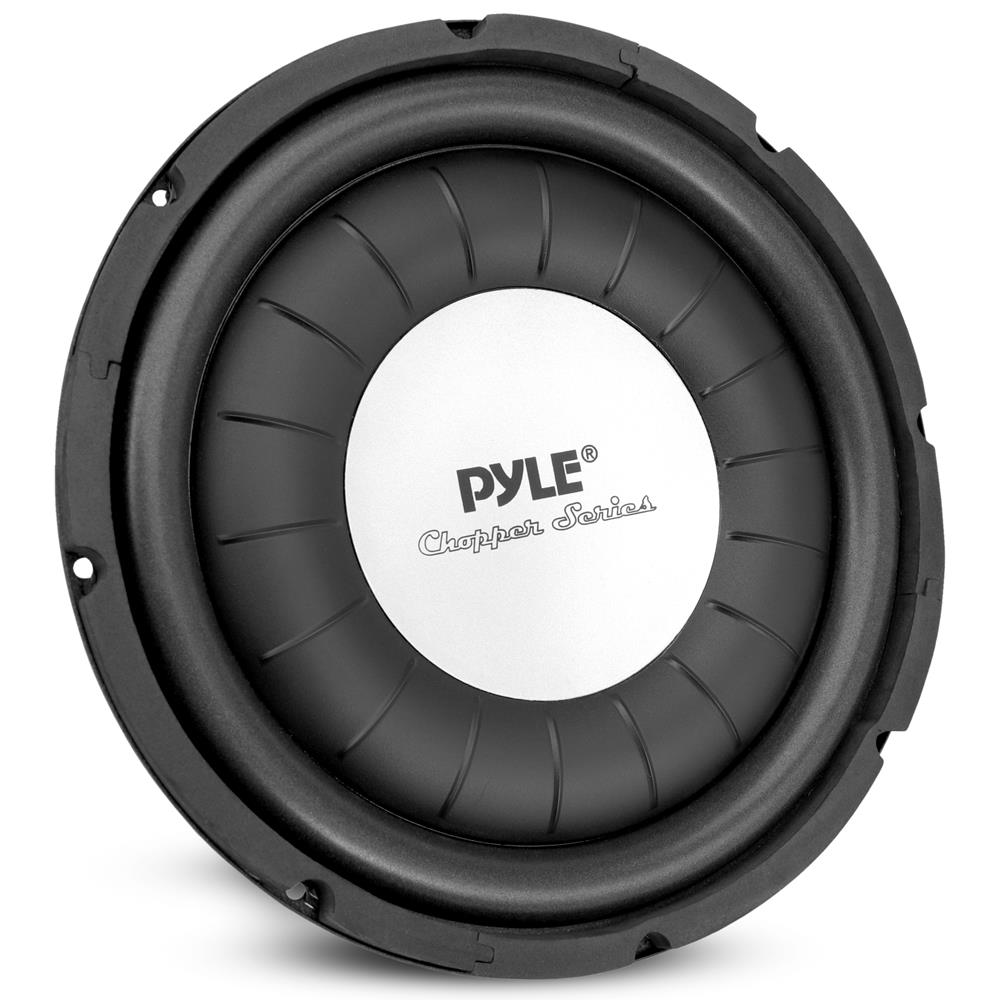

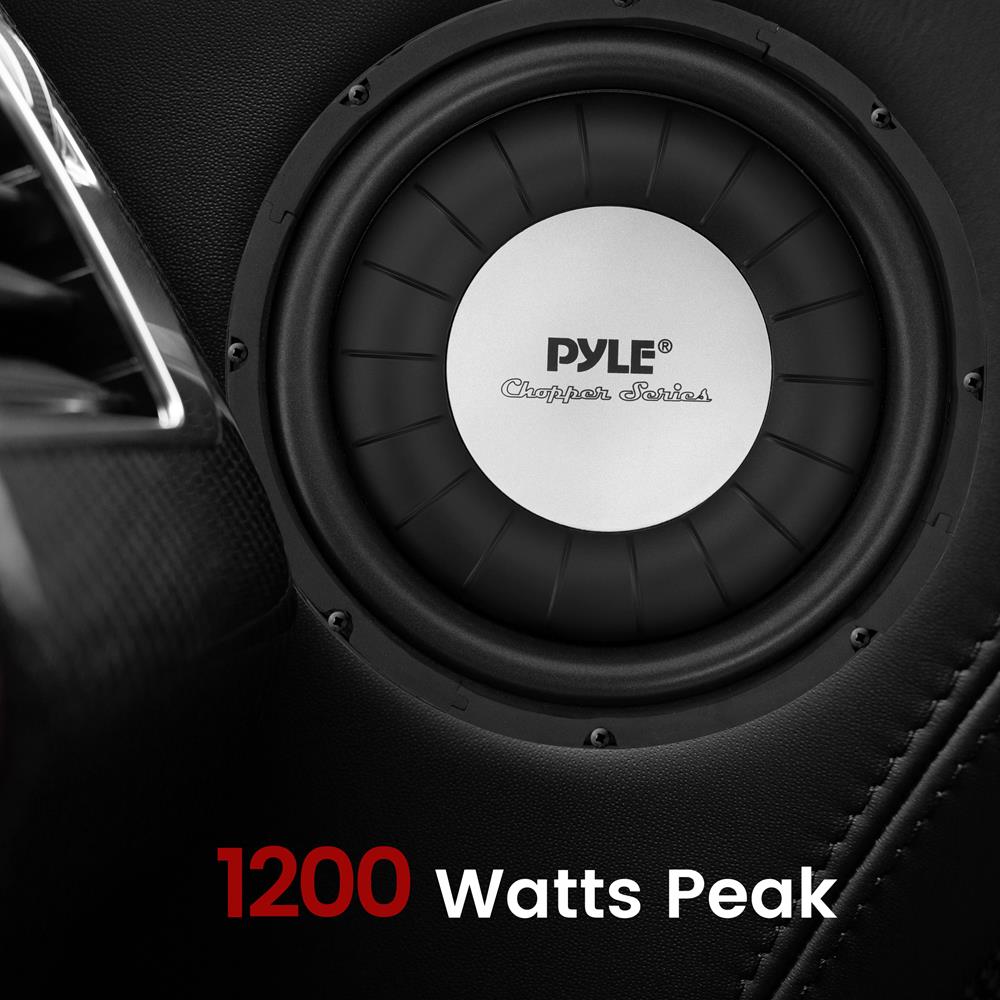

Last chance 12'' Low Profile Car Subwoofer 1200 Watt

This Pyle Chopper subwoofer is great when you need beastly bass in a slim package. With a slim-style mounting depth of 3.14'' -inches, these speakers will fit in the tightest spots. The 12'' -inch, 1200-watt dual voice coil subwoofer is equipped with a high quality poly mica cone and butyl foam surround for a clean, distortion-free low-end. The dual 2.5'' high temperature voice coils add extra punch, delivering a frequency response of 28 Hz to 2.2 kHz. The independently fused 20 amp speaker terminals provide a secure connection to wire up your system. Includes installation template.

• 12'' High Quality Poly Mica Cone - Power Handling: 600Watts RMS/1200 Watts Peak - Overall Diameter: 12.6''
• Butyl Foam Surround - Frequency Response:28 Hz - 2.2K Hz - Mounting Depth: 3.28''
• Dual 2.5'' High Temperature Kapton Voice Coil - Impedance (Per coil) : 4 Ohm - Includes Installation Template
• Independently Fused 20 Amp Speaker Terminals - Fs:29.1, Qms:4.08, Qes:0.44, Qts:0.396, Vas (L)102.18
• 75 Oz Magnet Structure - Efficiency: 92 dB

DETAILS

12'' High Quality Poly Mica Cone

Butyl Foam Surround

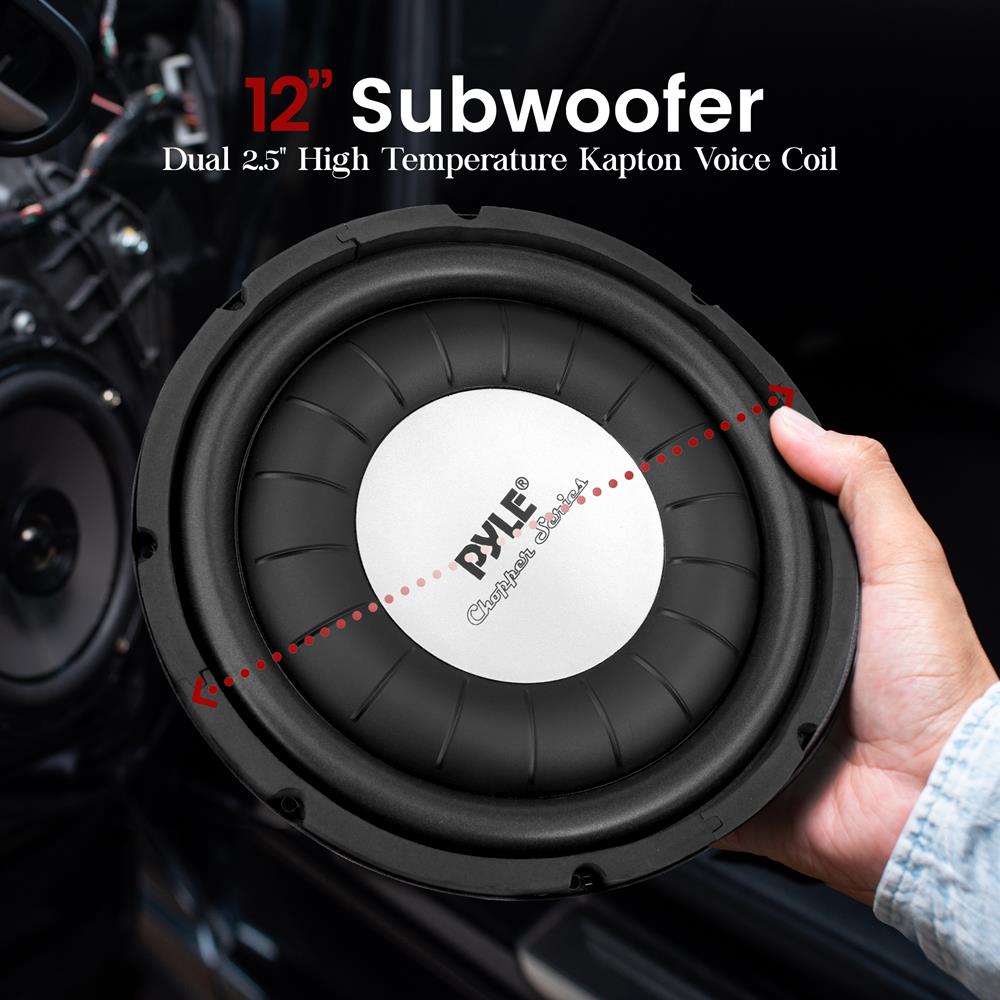

Dual 2.5'' High Temperature Kapton Voice Coils

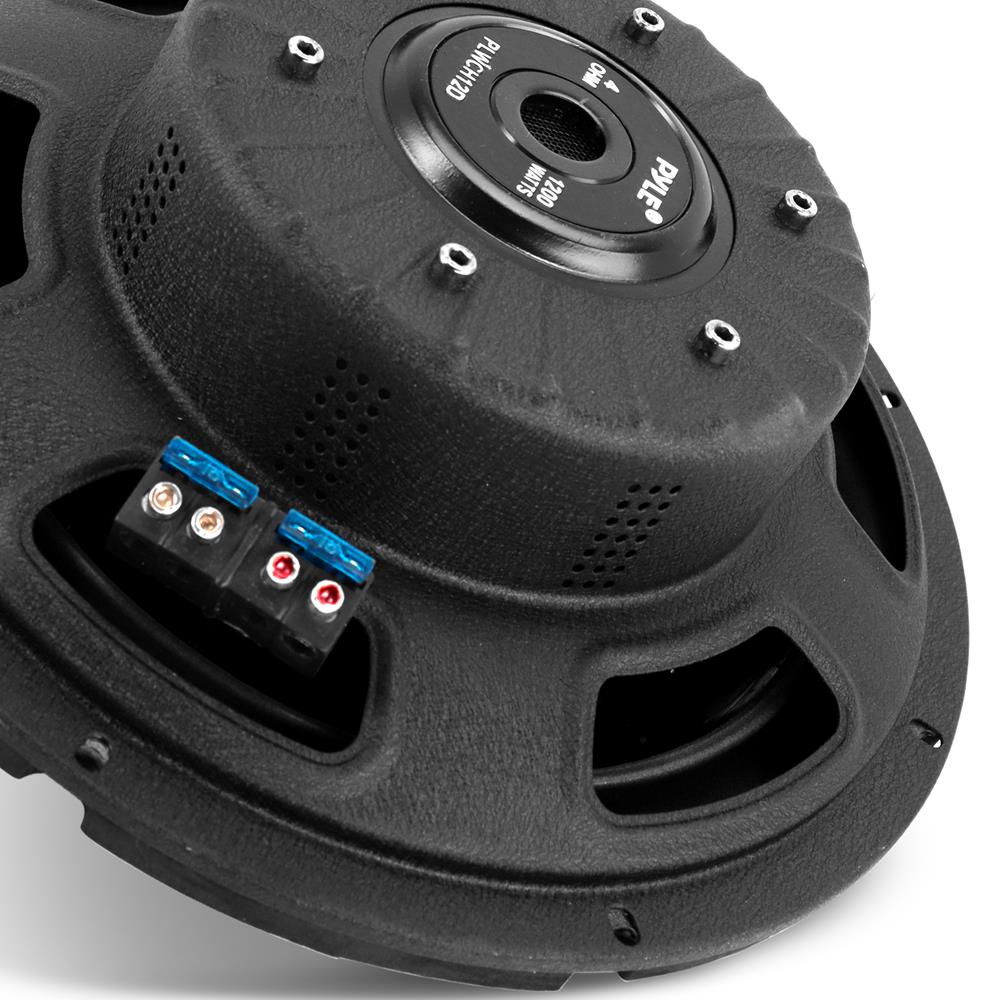

Independently Fused 20 Amp Speaker Terminals

75 Oz Magnet Structure

Power Handling: 600Watts RMS/1200 Watts Peak

Frequency Response:28 Hz - 2.2K Hz

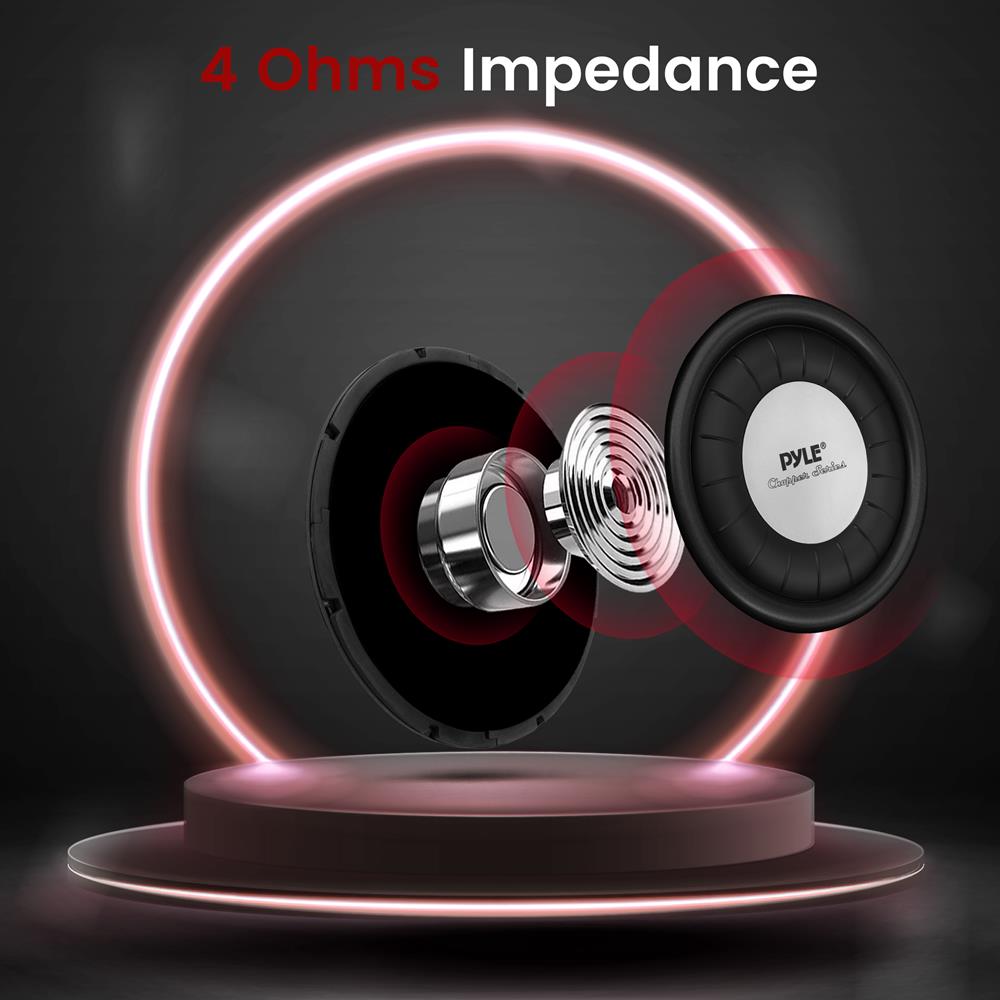

Impedance (Per coil) : 4 Ohm

Fs:29.1, Qms:4.08, Qes:0.44, Qts:0.396, Vas (L)102.18

Efficiency: 92 dB

Includes Cut-Out Template

Sizes / Dimensions:

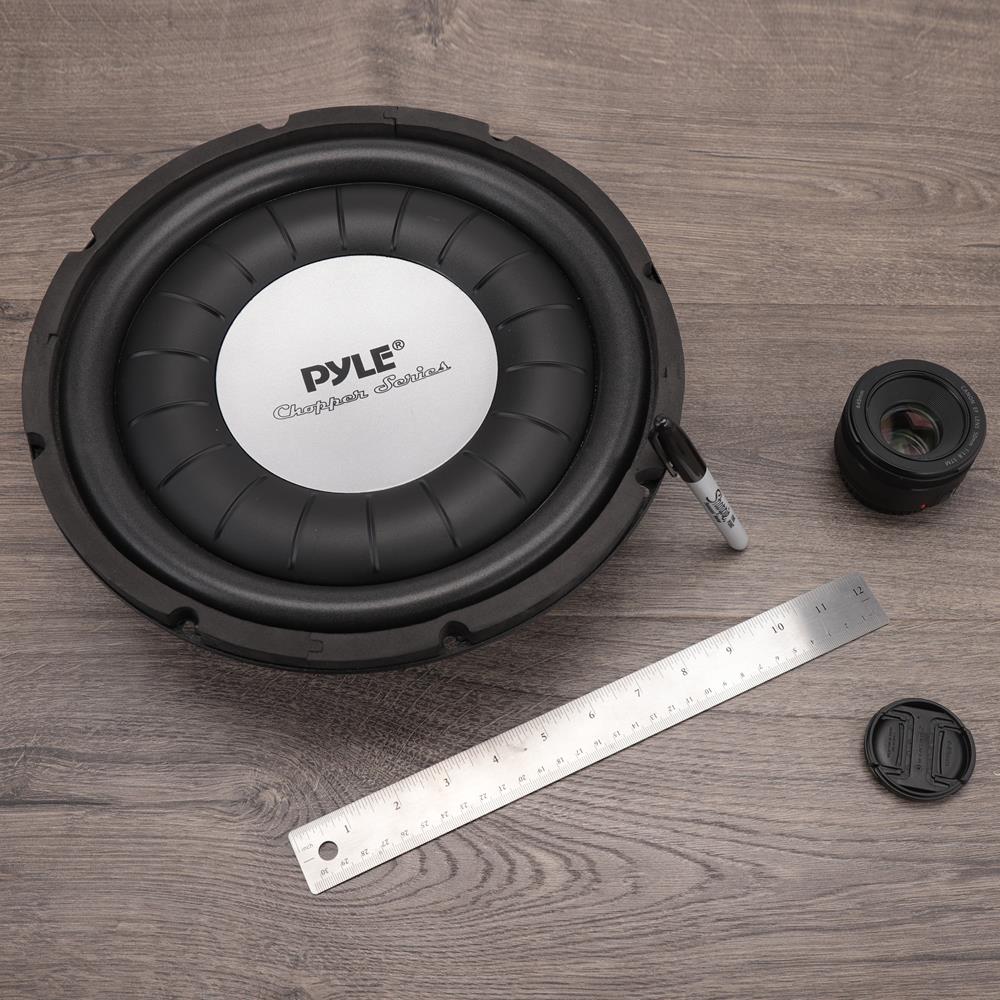

• Total Speaker Diameter: 12.24’’ -inches (311mm)
• Cut-Out Diameter: 11.02’’ -inches (280mm)
• Total Speaker Height: 4.01’’ -inches (102mm)
• Cut-Out / Mounting Depth: 3.14’’ -inches (80mm)

MANUALS & DOWNLOADS

PLWCH12D - Manuals
